The following module was designed to supplement medical student’s learning in the clinic. Please take the time to read through each module by clicking the headings below. Information on epidemiology, screening & testing, classification, signs & symptoms, diagnosis, radiology, pathology, staging, management and treatment of CNS cancer is provided. For quick reference, all objectives are answered in point form in the very last page of this module. summary tables are also placed at the end of every section.
By the end of the tutorial, the following objectives should be addressed:
Brain tumours are a diverse group of neoplasms of different histologic type and growth rate, which can produce their signs and symptoms by local brain invasion, increased intracranial pressure, and compression of adjacent structures (1). While neoplasms of the central nervous system were previously regarded with pessimism, it is notable that over 50% of brain tumours are benign (2).
This module will provide an introduction to the clinical evaluation and treatment of glioblastomas, as an introduction to tumours of the central nervous system. Glioblastoma, also known as Glioblastoma Multiforme (GBM), is classified by the World Health Organization as a subtype of Diffuse Astrocytoma, a tumour of neuroepithelial tissue. Other tumours of neuroepthelial tissue, or glial tissue, include oligodendroglial tumours, ependymal tumours, choroid plexus tumours and pineal tumours. These should be differentiated from tumours of other central nervous system structures, such as pituitary tumours and tumours of nerve sheaths or meningeal tissues (2). More information and clarification of classification will follow, this is simply presented to give readers the opportunity to orient themselves.
1) Astrocytic Tumours:
2) Oligodendroglial Tumours: includes Low Grade, Mixed, Anaplastic Oligodendroglioma
3) Ependymal Tumour: includes Low Grade, Anaplastic
4) Pineal Cell Tumours
Lastly, it is important to recognize that regardless of whether a tumour is small, large, fast growing or slow growing, its location is very important – as this determines compaction of adjacent structures and resectability (3).
The nervous system is a complex system for information handling in the body, consisting of billions of neurons and their supporting glial cells. The nervous system is structurally divided into the central nervous system (CNS), which includes the brain and spinal cord, and the peripheral nervous system (PNS), which includes the cranial, spinal, and peripheral nerves (1).
The two cell types that are present in the central and peripheral nervous system, the neurons and glia, have different structure and function. The neuron conducts impulses and is made up of a cell body, axon and dendrites. It may conduct impulses faster if a myelin sheath is present. The glia have short processes and function to support and protect neurons. They participate in neural nutritional and defend cells in the central nervous system. There are 10x more glia than neurons in a mammalian brain, and six different types (1):

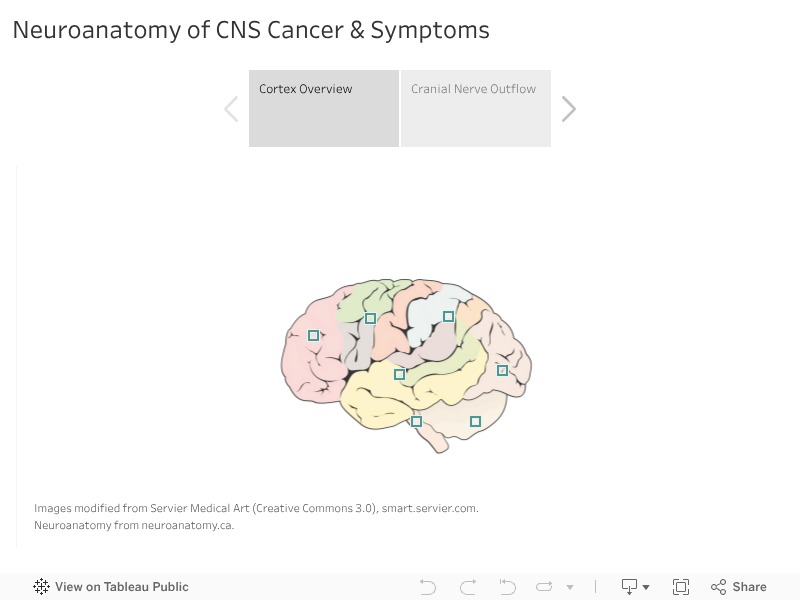

When tumours develop in the central nervous system, the signs and symptoms are often related to the area in which they develop. A basic knowledge of the brain lobes is useful in localizing malignancies. Review the table below for further information (2).
Table 1: Cognitive Deficits/Symptoms Based on Brain Mass Location
The most frequently occurring primary brain tumours are gliomas – a group that includes astrocytomas, oligodendrogliomas (OD) and ependymomas. This group accounts for over 80% of all malignant tumours of the central nervous system, and 40% of all primary brain tumors. Within astrocytomas, the glioblastomas are the most malignant glial tumour and represent 50% of all glial tumours. The incidence is 2 or 3 per 100,000 persons per year (1). Gliomas are rare in adolescents and children, their peak incidence is in the fifth decade, between 50 and 55 years. There is a slight male predominance in all types of CNS tumours except meningiomas.2 The incidence of malignant brain tumours in males is 7.7 per 100,000 person-years for males and 5.4 per 100,000 person-years for females (1).
Risk factors for primary CNS tumours have been difficult to identify with the majority of cases presenting no clear etiological factors. Positive correlations have been observed between brain tumour occurrence and exposure to synthetic rubber, vinyl chloride, and petroleum refining. It appears that diagnostic radiation is not strongly associated with the development of gliomas (1), however, therapeutic ionizing radiation such as CT scans or X-rays of the head and neck pose a risk (3). Brain tumours can arise in association with genetic syndromes such as neurofibromatosis type 1, Li-Fraumeni, Tuberous Sclerosis, Neurofibromatosis Type II and Turcot Syndrome.
There is no useful screen available to be used on the healthy population. However, note should be taken of the patient’s occupational and family history (1).
There can be several different ways to speak about tumours located in the central nervous system. We first discuss the classification seen within the entire central nervous system, and then discuss Gliomas more specifically.
Classification of Primary CNS tumours can be made according to tissue of origin (1):
Classification can also be based on the location of cancer origin. A primary tumour denotes that the cancer began in the brain, whereas a secondary tumour denotes at the cancer began elsewhere and has metastasized to the brain (2).
Gliomas more specifically can be classified based on a combination of histology and grade. We will take a closer look at the classification of Astrocytomas (2):
The grade of a tumour describes its characteristics:
As previously mentioned, tumour location can be one of the most important factors in regards to clinical presentation of a tumour. Size is also important as the degree of compression of adjacent tissue will present with focal neurological deficits that will generally be of upper motor neuron in type. One may see spasticity, hyerreflexia and upgoing plantar reflexes (1).
The follow are the most common signs and symptoms of gliomas as reported by the Glioma Outcomes Project:
One should be aware that patients may also present with seizure and raised intracranial pressure. The raised pressure can be the cause of headache, nausea, vomiting, apathy and even poor concentration, memory impairment and personality change (1).
As headache is a common symptom experienced by patients, we discuss important qualities and characteristics to help evaluate possible headache etiology, mechanisms of headache and diagnostic criteria.
Mechanism of Headache: in brain tumours, likely mechanisms of brain headache are traction on the large blood vessels and dura, or compression of the cranial nerve fibers by the tumour. Other structures that are sensitive to pain include the meningeal arteries, the large venous channel of the brain and dura, and subcutaneous tissue and muscles of the skull. The brain parenchyma itself is insensitive to pain (3).
Diagnostic factors: as headache is a common clinical feature of many illnesses, it becomes very important to recognize the characteristics of headache that are associated with tumours. The following is a list of red flag signs and symptoms for headache with a neoplastic etiology (3).
The International Headache Society have proposed a set of diagnostic criteria to help diagnose headache attributable directly to neoplasm – once these signs or symptoms are seen, neuroimaging is indicated (3):
Considering the possible mechanisms of spread is important when considering a presenting symptom.
The main mechanism of spread of CNS tumours is via direct infiltration. Malignant or benign, CNS tumours enlarge by infiltrating and/or compressing adjacent tissue which eventually leads to increased intracranial pressure. The tumour may also compress the ventricular system, leading to impaired drainage of cerebrospinal fluid and thus resulting in hydrocephalus (1). Glioblastomas commonly spread through white matter tracts across the corpus callosum, internal capsule, and optic radiations. The local infiltration will manifest as focal neurological deficits (4).
Lymphatic spread is not seen as cerebral tissue lacks a true lymphatic drainage system. Likewise, distant metastasis are rare but are described in patients with extremely aggressive tumours such as glioblastomas that have invaded the dural venous sinus system and in medulloblastomas (1).
Based on history, physical, imaging, and most importantly biopsy, a diagnosis of glioblastoma can be made. However, a working differential diagnosis will help guide the process:
There are a myriad of imaging options available for central nervous system neoplasms: we focus our discussion on the most commonly used, contrast-enhanced MRI and Computed Tomography (CT).
Options:
Contrast-enhanced MRI is the diagnostic standard for brain tumor imaging. With enhanced sensitivity, MRI provides detailed physiologic and anatomic information. While contrast-enhanced CT is able to detect high-grade lesions, low-grade lesions may be detectable only on MRI. In addition, contrast-enhanced CT may miss small foci of metastatic disease that are visible on MRI (4).
Imaging of high grade glioblastomas usually reveals:
Note that the reason for enhancement between tumours may be different: circumscribed astrocytomas enhance because their blood vessels undergo "chronic glomeruloid degenerative hyalinization" whereas the enhancement in anaplastic astrocytomas and glioblastomas is due to endothelial proliferation (6).
It is also important to recognize that while brain tumor imaging can be helpful in narrowing the differential diagnosis, confirmation of the diagnosis via pathology is necessary in nearly all cases (4).
Though use of CT has been replaced by cranial MRI, it still offers many advantages. Namely, CT is very useful in an emergency situation where time constraints are present, or if the patient has contraindication to conventional MRI, either due to claustrophobia or an iron-containing implant. CT may also be advantageous in situations requiring detection of bone or vascular involvement, distant metastases to skull base, or metastases to foramen magnum (5).
A tissue diagnosis is essential in the patient with suspected glioma. Biopsy may be performed via a procedure known as stereotactic biopsy, or at the time of surgical resection of the tumor. Biopsy without surgical resection may be warranted in patients who physically cannot undergo surgery or in patients whose tumors are not amenable to resection.
Stereotactic biopsy is a biopsy procedure that uses CT or MRI imaging and framing devices to allow for accurate tissue localization – frameless stereotactic devices that create a computerized link between the tissue in question and patient surface landmarks have been observed to have an accuracy of 1mm within the intracranial space. Overall, stereotactic image-guided biopsy is a safe diagnostic procedure in a report of 125 stereotactic biopsies, a definitive diagnoses was obtained in 98% of cases (7).
The distinction between the various grades of infiltrating astrocytic neoplasms is based upon four histologic features: nuclear pleomorphism (or nuclear atypia), mitotic figures, endothelial proliferation and necrosis. Glioblastomas, by definition, contain at least three of these four histologic features. The picture below shows necrosis marked by the star. As is characteristic of glioblastomas, the tumour has neoplastic cells at the edge of the necrosis (marked by an arrow in the image below).

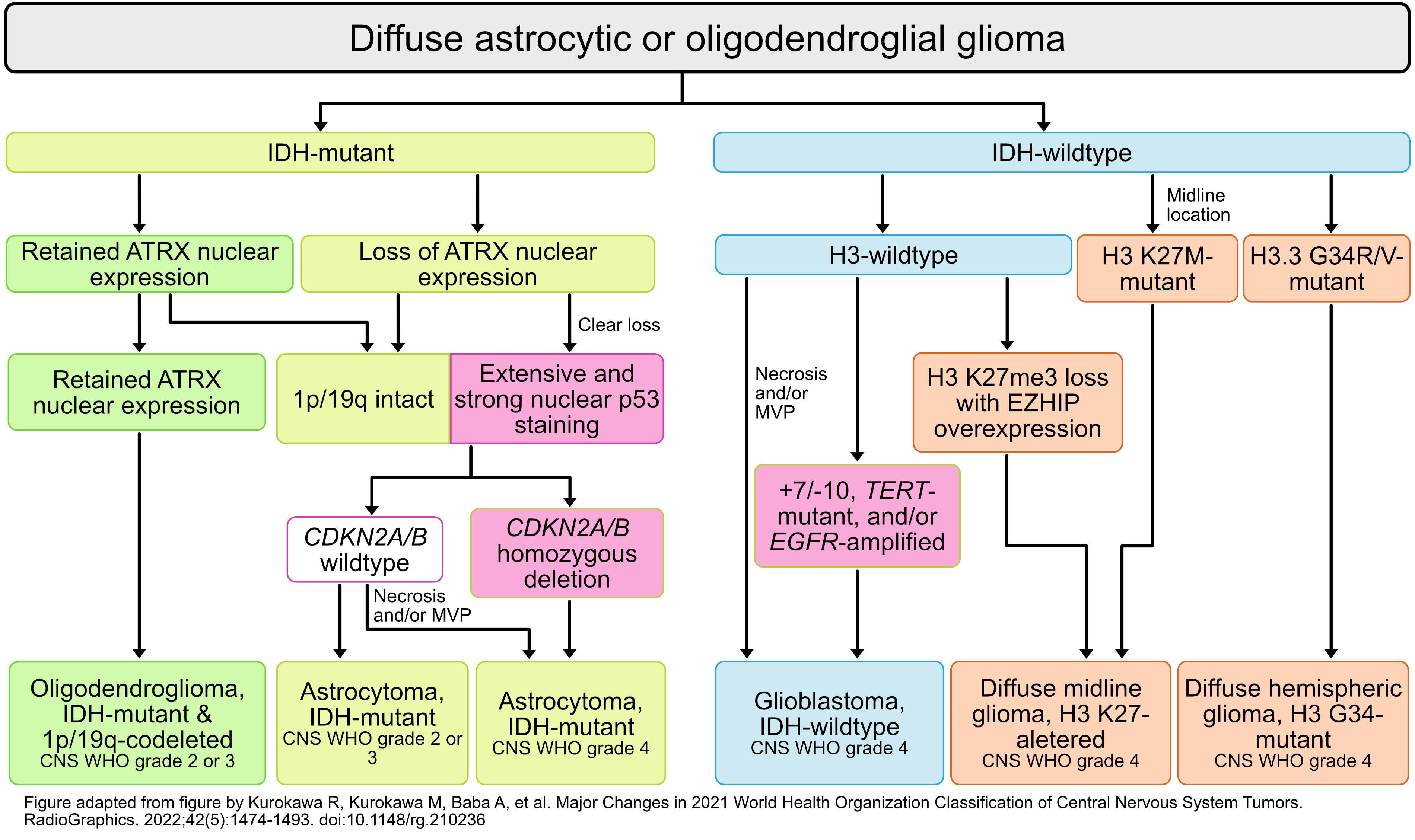

As was presented earlier, there are many pathological classifications currently in use. The most predominate is presented here, with an addition of pathological features seen in each class.
No universal staging system is currently in place, however prognostic factors are taken into account to complete the clinical picture. See section on Prognosis for more information.
Malignant gliomas are aggressive and as such are best managed with maximal surgical resection, adjuvant chemotherapy and adjuvant post-operative radiation therapy. We discuss each here.
For patients with primary glial tumors, maximum surgical resection is usually recommended, with two exceptions: Low grade gliomas, for which the impact of maximal resection is still unknown, and diffuse pontine gliomas. Maximal section refers to removal of visibly abnormal tissue as seen either via T1 weighted MRI or intraoperatively and is completed to a degree that is consistent with maximal functional preservation of neurologic tissue. Maximal resection provides certain benefits:
While maximal resection is considered the most preferable, the tumor location and size factors heavily into surgical feasibility.
Adjuvant radiation therapy (RT) directed at any residual disease improves survival after surgical resection. A main objective in this type of therapy is to minimize radiation to normal brain tissue and for this reason Whole Brain Radiation Therapy (WBRT) has been replaced with Focal External Beam RT, called Involved Field RT (IFRT). Today there are many RT techniques available, including 3D conformational RT, Intensity-Modulated RT, Reirradiation, Stereotactic radiosurgery and interstitial brachytherapy.
Use of temozolomide, an oral alkylating agent, is the current standard for adjuvant chemotherapy. The combination of temozolomide plus radiation therapy shows a statistically significant prolongation of patient survival and was particularly effected in patients under 50 years of age.
The major predictive factor for benefit from chemotherapy is if the patient has MGMT methylation: methylation of the promoter for methyl guanine methyl transferase (MGMT). The enzyme methyl guanine methyl transferase is responsible for DNA repair after chemotherapy with an alkylating agent. As a tumor develops, this gene may be silenced, thus the patient’s DNA does not get repaired, and the effectiveness of chemotherapy is enhanced. The presence of MGMT methylation may also influence rates of clinical relapse, as studies have shown that patients with the methylation had a longer time interval before initial relapse.
As elderly patients constitute approximately one half of those with malignant gliomas and also have a poorer prognosis, debate has opened on best practice within this population. For instance, while RT has shown benefit, the optimal dose and schedule remains unclear with many elderly unable to tolerate the regimen used in younger patients. It has been suggested that lower doses of radiation and shorter course be used as they yielded comparable survival rates and decreased use of post-treatment corticosteroid therapy.
Follow up imaging is often performed as deemed clinically necessary, taking patient factors such as age and prognosis into account.
Major Prognostic Factors for those with CNS Tumours:
In addition to these main factors, others important factors for prognosis include use of adjuvant temozolamide, mental status and corticosteroid use at baseline.
KPS, or Karnofsky performance status, is a bounded rating system to assess patient performance – see the table below.
Survival of patients with astrocytomas is variable and is not entirely explained by histologic grading or clinical parameters. It has been found that genetic mutations have prognostic value and as such testing for these changes has become widespread as it directly influences therapeutic decisions. For instance, LOH 1p (Loss of heterozygosity on chromosome 1p) and LOH 19q are important in predicting response to chemotherapy in oligodendroglial tumors. As stated previously, another major predictive factor for benefit from chemotherapy is if the patient has MGMT methylation: methylation of the promoter for methyl guanine methyl transferase (MGMT). The MGMT enzyme is responsible for DNA repair after chemotherapy with an alkylating agent. As a tumor develops, this gene may be silenced, thus the patient’s DNA does not get repaired, and the effectiveness of chemotherapy is enhanced. The presence of MGMT methylation may also influence rates of clinical relapse, as studies have shown that patients with the methylation had a longer time interval before relapse.
Karnofsky Performance Status Scale: An abbreviated table is presented above.
Within astrocytomas, the glioblastomas are the most malignant glial tumour and represent 50% of all glial tumours. The incidence is 2 or 3 per 100,000 persons per year
There is no useful screen available to be used on the healthy population. However, note should be taken of the patient’s occupational and family history.
Gliomas more specifically can be classified based on a combination of histology and grade. We will take a closer look at the classification of Astrocytomas:
Signs and symptoms are usually: headache, seizures, memory loss, personality change, motor weakness, visual symptoms, language deficits.
To generate ideas, split categories into the possible malignant vs. benign etiologies.
Imaging of high grade glioblastomas usually reveals:
Malignant gliomas are aggressive and as such are best managed with maximal surgical resection, adjuvant chemotherapy and adjuvant post-operative radiation therapy.
Biopsy is either stereotactic or done at time of surgical resections. Tissue pathology is requires for diagnosis. Stereotactic biopsy is a biopsy procedure that uses CT or MRI imaging and framing devices to allow for accurate tissue localization.
It has been suggested that lower doses of radiation and shorter course be used as they yielded comparable survival rates and decreased use of post-treatment corticosteroid therapy.
Follow up imaging is often performed as deemed clinically necessary, taking patient factors such as age and prognosis into account
No widespread staging system is currently in use.
Use your mouse to click through the slides and answer each question in the text box provided.
Note: This case can be completed on an iPad. To do this download the (free) Articulate Mobile Player for the iPad by clicking here.
